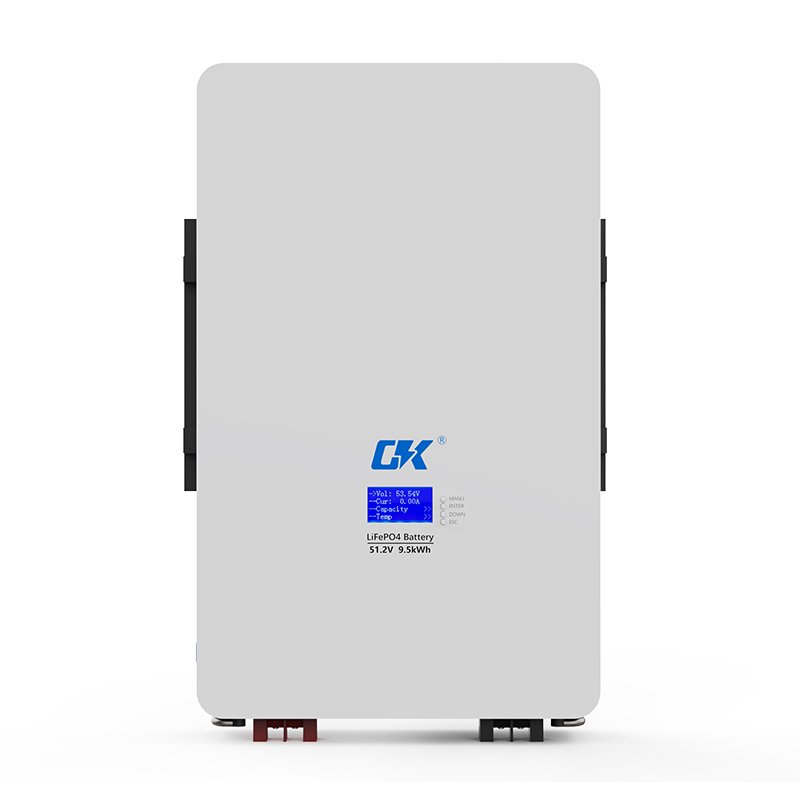

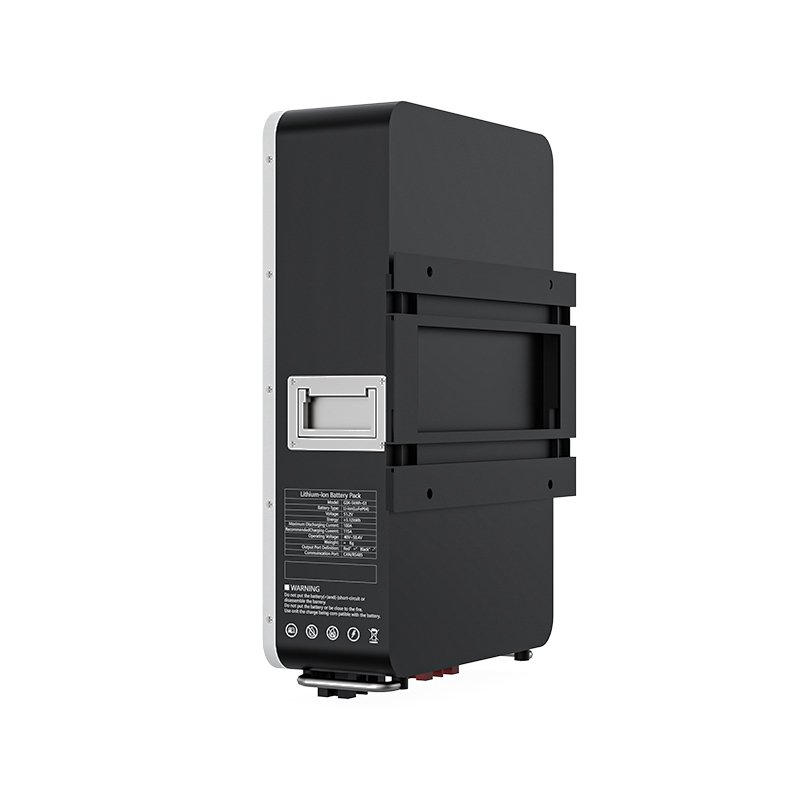

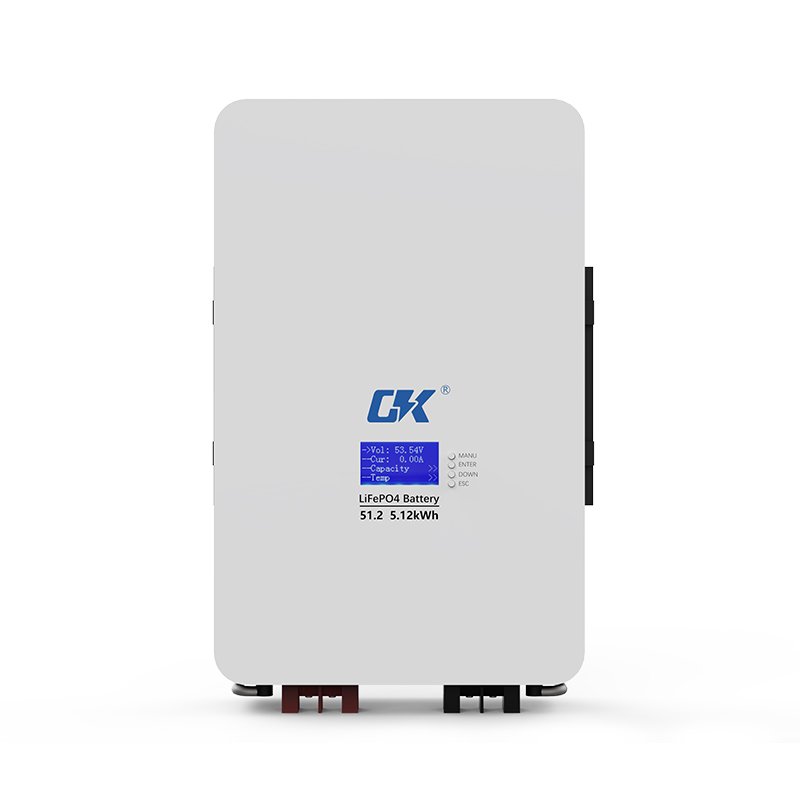

The 51.2V wall-mounted series is a lithium ion phosphate battery module designed for residential energy storage applications. It has a variety of combined capacity and power options. The battery module has an integrated intelligent BMS and supports communication with most mainstream inverters. It has great advantages in safety, cycle life, energy density, temperature range, and environmental protection.
Power Wall Lifepo4 Energy Storage Battery
Nominal Power: 5.12Kwh/ 7.68Kwh/ 9.42Kwh
Battery Type: Lifepo4 Battery
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah/150Ah/184Ah
Operating voltage range：40-58.4V
Standard charge/discharge current: 50A/75A
Maximum continuous charging current: 100A
Maximum continuous discharging current: 100A
Recommended Scope of SOC Use: 5％~95％
Charging operating temperature: 0℃~50℃
Discharging operating temperature: -20℃~50℃
Cycle Lifetime：6000times
Support Parallel up to 15pcs connection operation.
