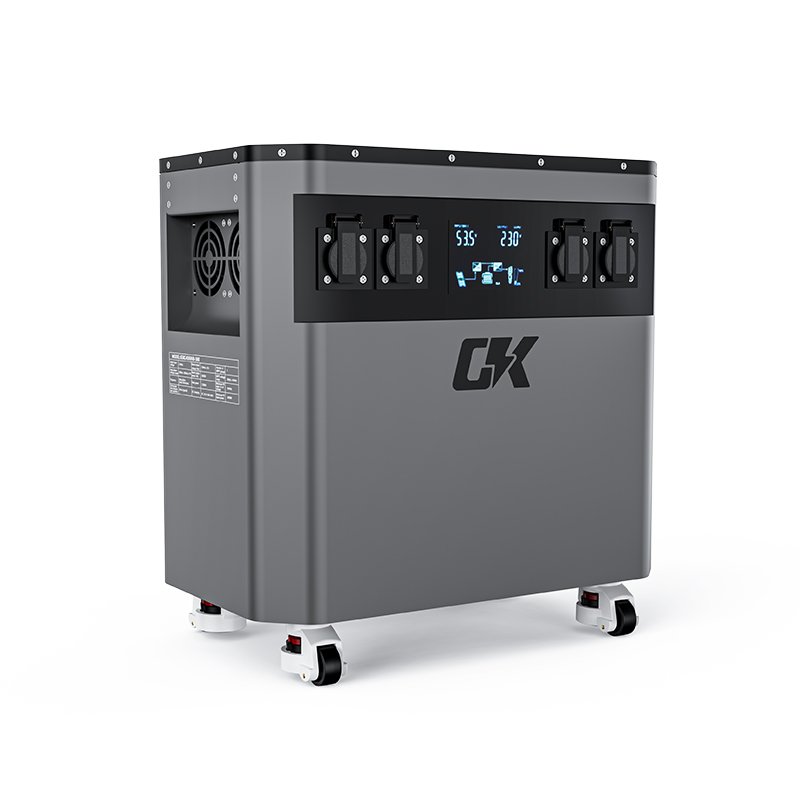

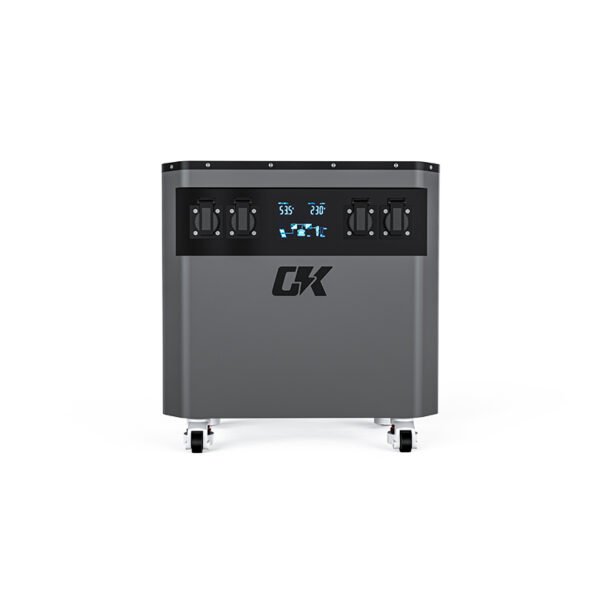

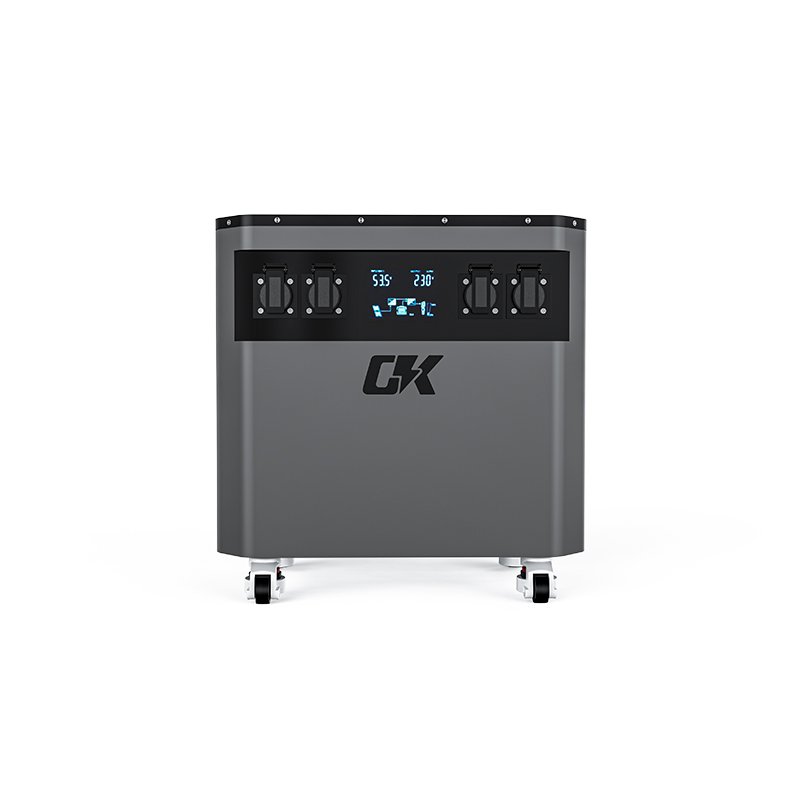

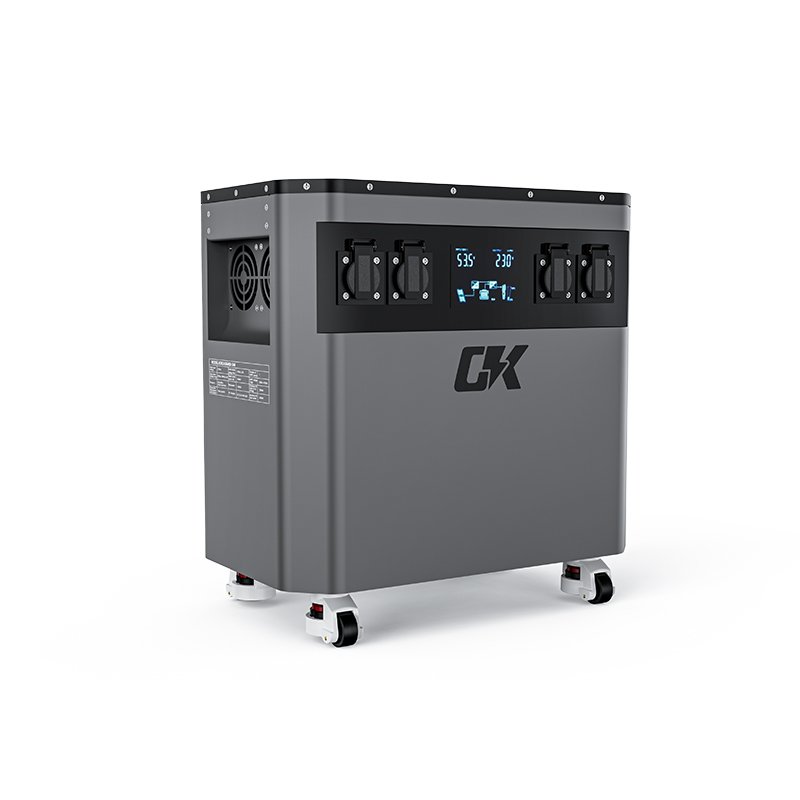

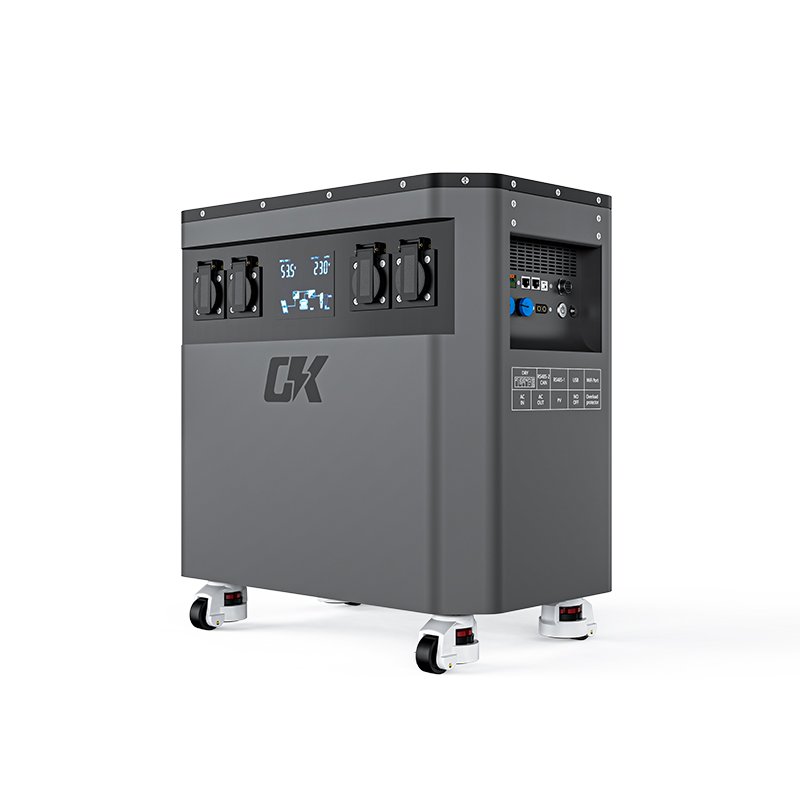

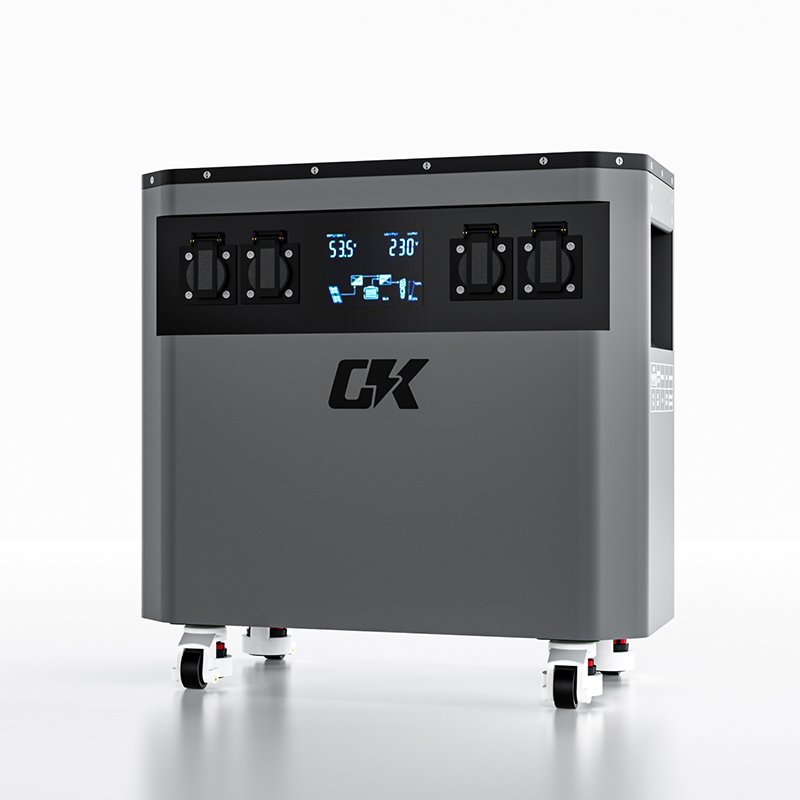

7.68Kwh Portable Lithium Iron Phosphate Home Storage Battery Pack All in One Power System Solar Energy System

This is a multi-functional inverter/charger that combines an inverter, solar charger and battery charger Function, provide uninterruptible power support. Its comprehensive LCD display provides user configurable and easy to operate press Operation, such as battery charging current, AC/solar.

Feature:

  • Pure sine wave inverter
  • The input voltage range can be configured for household appliances and personal computers through LCD Settings
  • Set application-based configurable battery charging current via LCD
  • Ac/solar charger priority can be configured through LCD Settings
  • Compatible with power supply voltage or generator power supply
  • The system automatically restarts when the AC power is restored
  • Overload/overheat/short circuit protection
  • Intelligent battery charger design to optimize battery performance
  • Cold start function



Additional information

Specification Parameters

Battery Nominal Voltage: 25.6Vdc

Battery Nominal Capacity: 300Ah

Battery Nominal Power:7.68kWh

0utput Power:3600W

Output Voltage: 120Vac±5%

Output Frequency:50Hz/60Hz

Mains Supply 0utput Voltage:(170Vac-280Vac)±2%@UPS Mode; (90Vac-280Vac)±2%@APL Generator Mode

Mains Supply Charge Current:DC 40A MAX

Loaded Motor Energy: 2HP

PV Max Open-Circuit Voltage: 300Vdc

PV Operating Voltage Range: 120Vdc~300Vdc

Max PV Input Power: 4500W

Max PV Input Current: 27A

PV Charge Current: DC 80A MAX

Hybrid Charge Current:DC 80A MAX

Cycle Lifetime: 6000time+

Product Dimension: 508*308*525mm

Net Weight: 68Kg
