Product Features

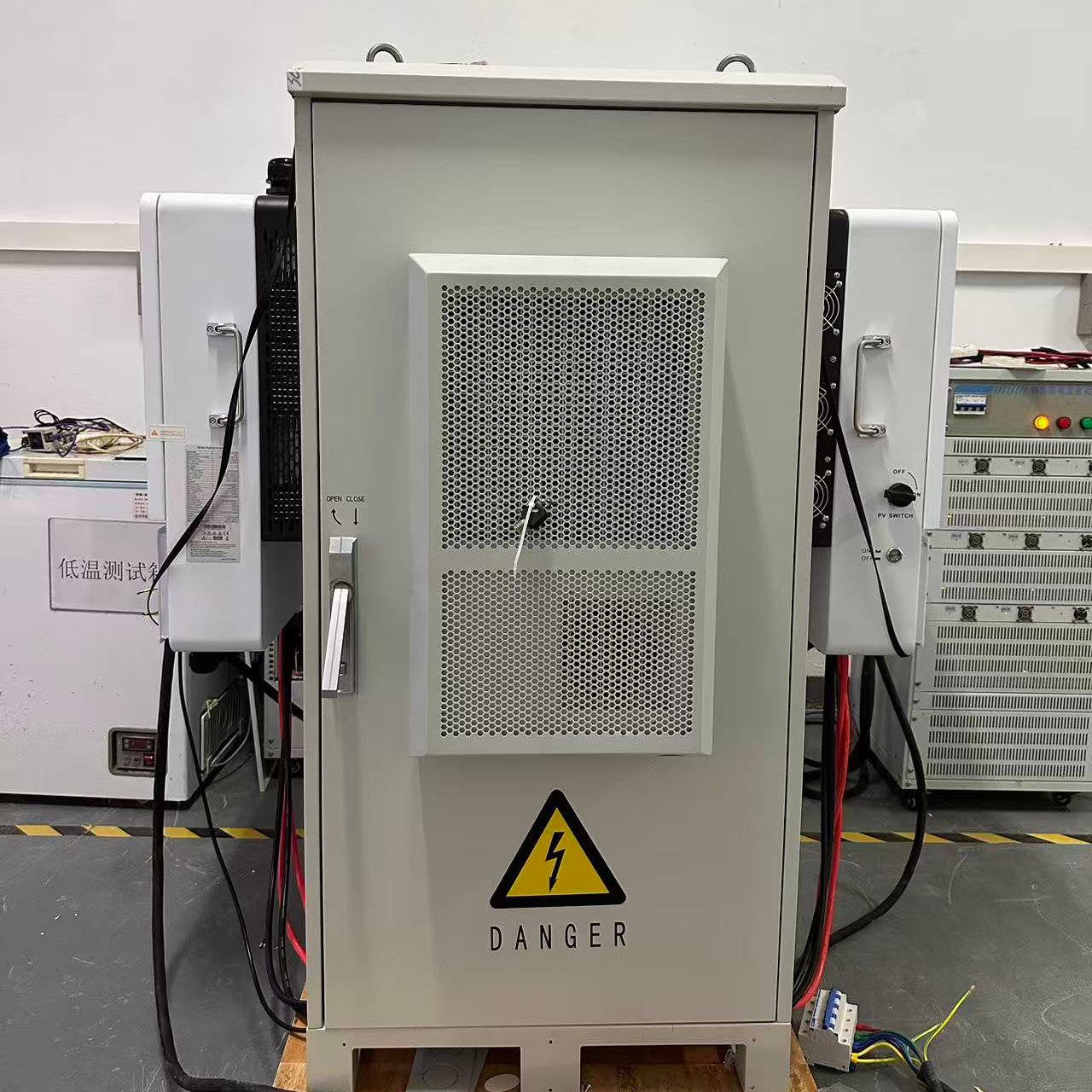

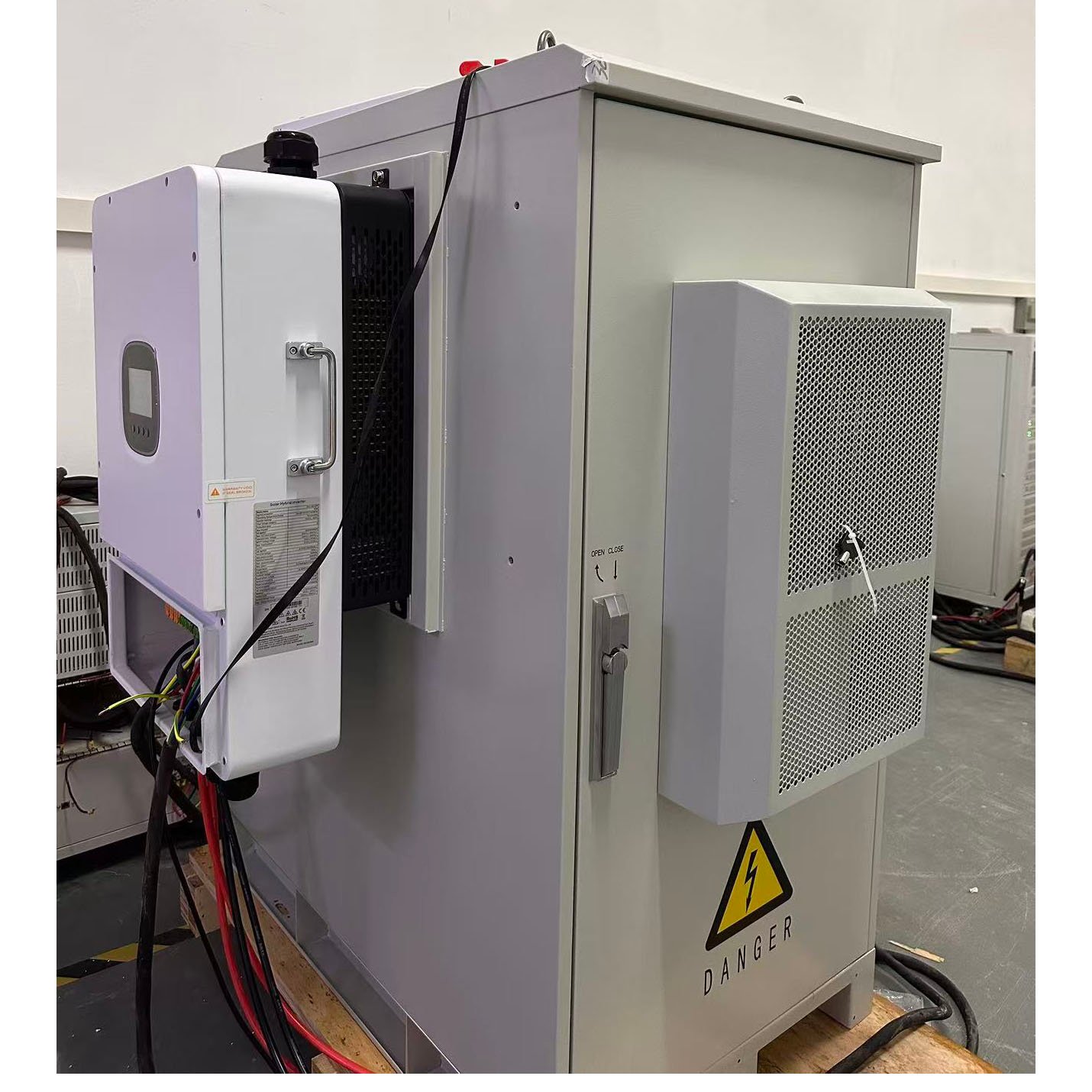

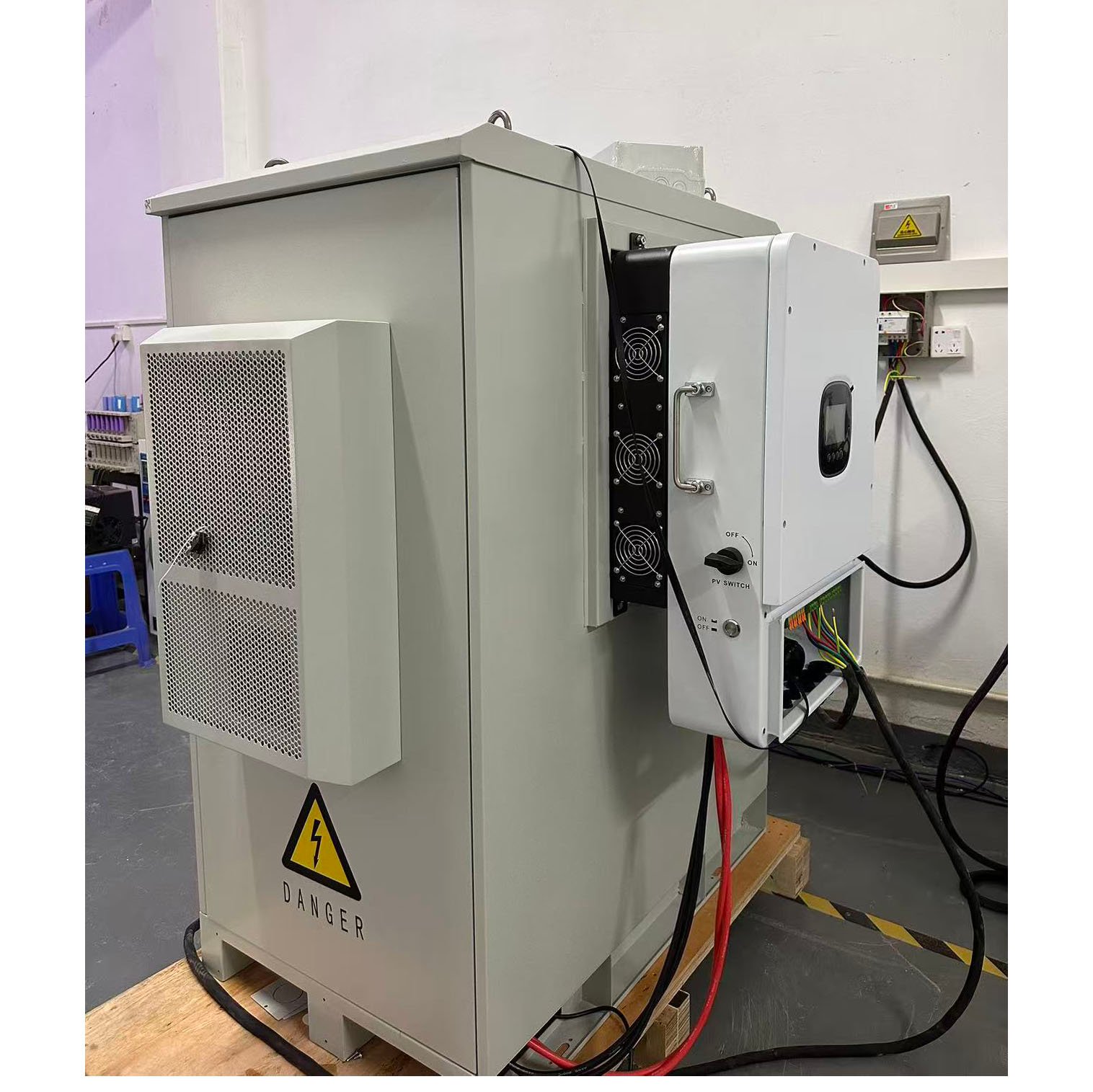

The ES2460P36 product primarily consists of a power battery cluster, a hybrid solar-storage inverter, a variable-frequency temperature control system, a precision suppression and explosion venting combined fire protection system, auxiliary electrical equipment, and a weather-resistant sheet metal cabinet. It is an intelligent, digital 24kW/64kWh system managed by both a BMS and EMS.
The integrated solar-storage intelligent distributed energy storage system has the following features:
-Safety
-Multi-dimensional electrical protection with integrated sensing and multi-level circuit breaker protection;
-Modular energy storage and low-voltage parallel BMS improve system stability;
-Thermal aerosol fire extinguishing device ensures safe operation of the energy storage system;
-Intelligent temperature control system with a system temperature difference of ≤5°C, increasing battery cycle life by 12%.
Product Model: EES2460
PV Parameters:
Maximum Input Power: 36Kw
Start-up Voltage:200V
Maximum PV Voltage: 800Vdc
Rated PV Voltage:400Vdc
MPPT Operating Voltage Range:200-650Vdc
Number of MPPTs: 4
Number of Single MPPT Inputs: 2
Maximum Input Current (per MPPT): 22A*4
Maximum Short-Circuit Current (per MPPT):37A*4
DC side energy storage parameters:
Rated energy:64KWh
Rated capacity: 1256Ah
Rated voltage: 51.2Vdc
Battery voltage range: 40~58.4Vdc
Rated charge/discharge current: 600A
Maximum charge/discharge current: 800A
AC Parameters:
Rated Output Power:24KW
Maximum Output Power:24KW
Rated Input Power:24KW
Maximum Input Power:24KW
Rated Output Current:34.8A
Maximum Output Current:34.8A
Rated Voltage (Input and Output):3L/N/PE; 400V
Grid Frequency:50Hz/60Hz
Voltage Total Harmonic Distortion:<3%@rated power & linear load
Temperature Control and Fire Protection
Temperature Control: Smart Air Conditioner, Smart Fan
Fire Extinguishing Agent: Aerosol
Mechanical Parameters:
Energy Storage Cabinet Gross Weight: 700kg
Inverter Gross Weight: 49kg
External Dimensions (W*D*H):
Cabinet: 1350*650*1000mm, Wooden Case: 800*1370*1650mm
Inverter: 700*440*260mm, Carton: 920mm*620mm*390mm
Communication: Wi-Fi, Bluetooth
Waterproof Rating: IP54
Configuration list of integrated photovoltaic and storage intelligent distributed energy storage cabinets

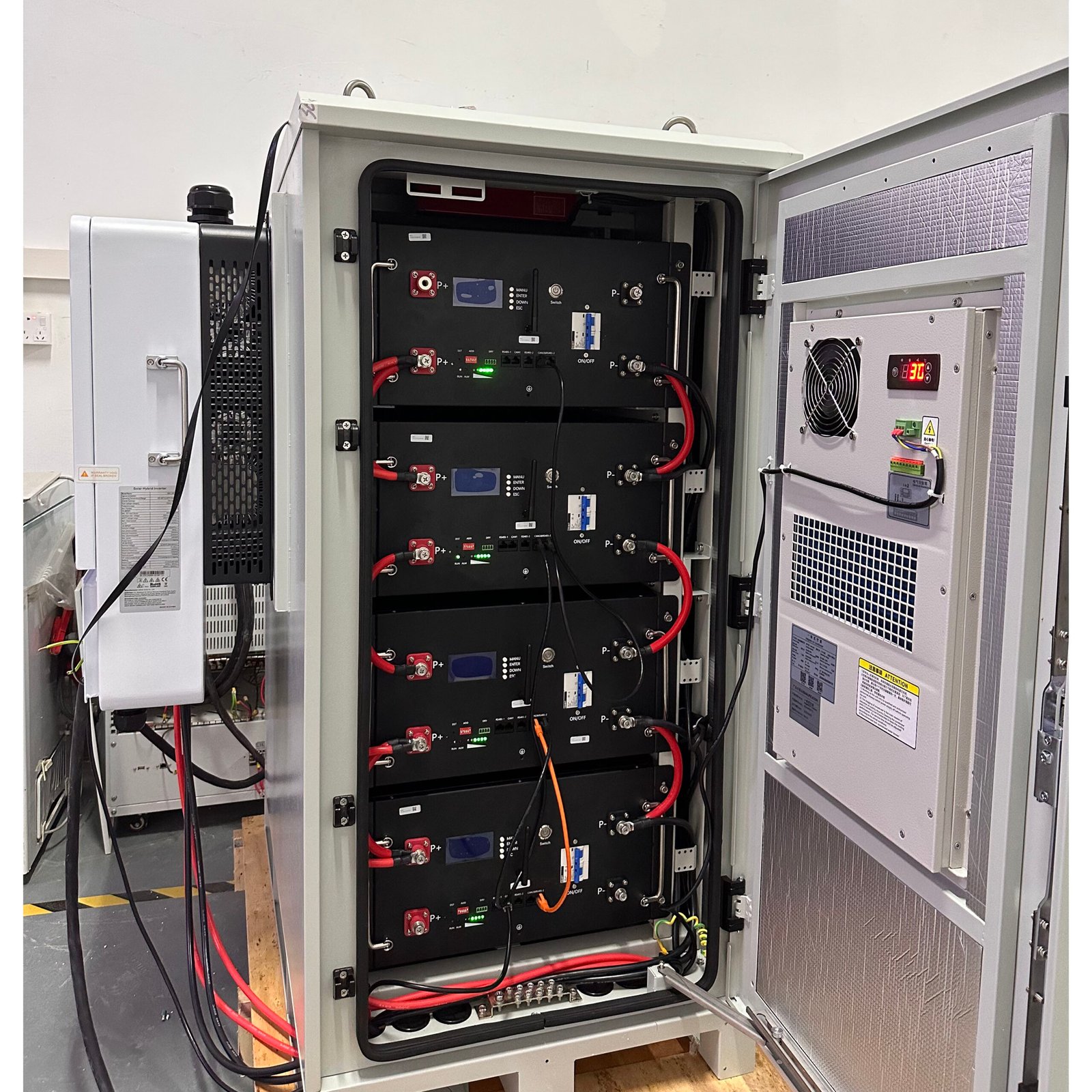

Battery Pack: 4 * Single Pack: 51.2V 314Ah 16kWh
Battery Cabinet: 1 pc
Fire Protection: 1 * Aerosol
Climate Control System: 1 * Smart Air Conditioner, 1 * Smart Fan

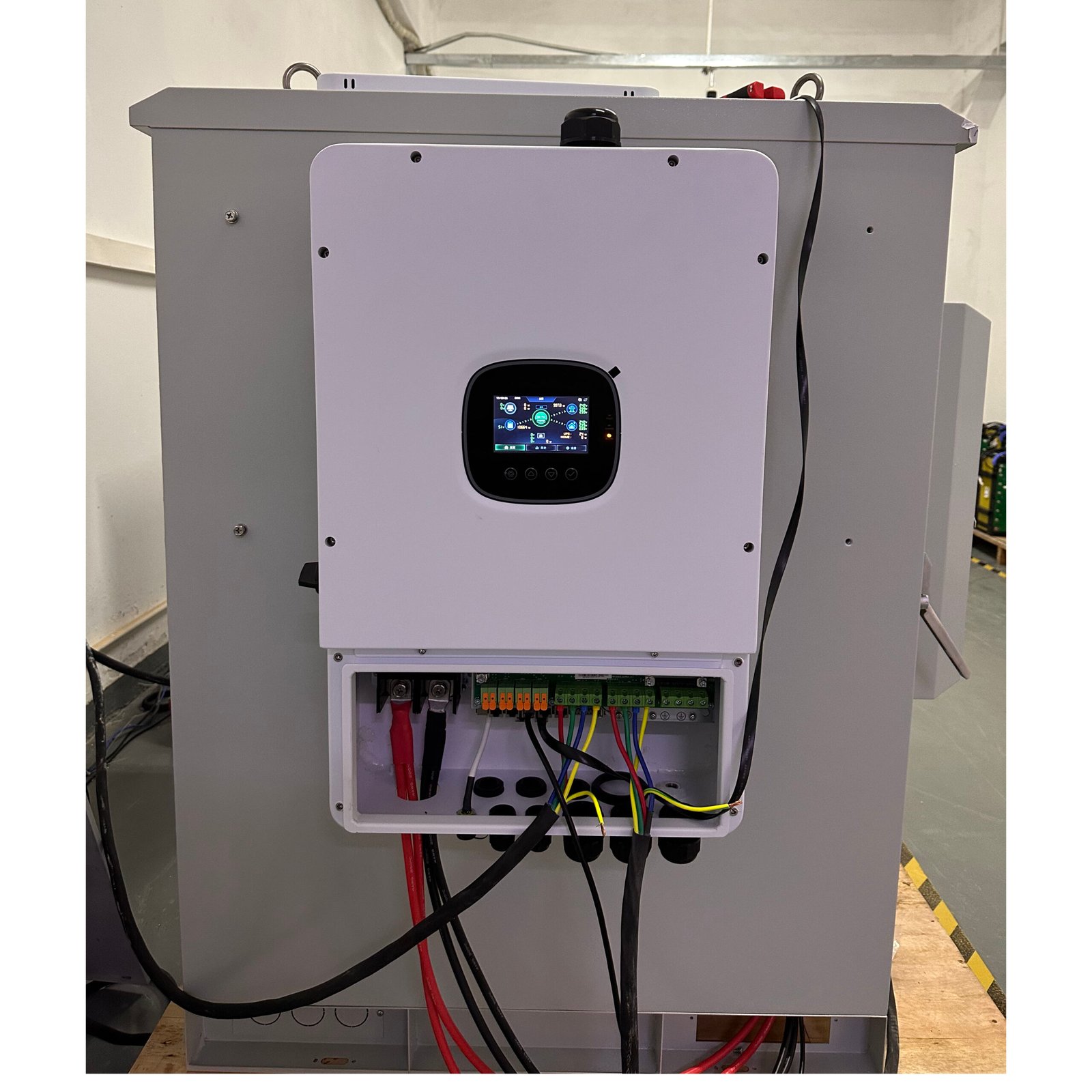

Hybrid Inverter: 2 * Shuori Three-Phase 12kW
Cables and Others: 1 * Parallel, Output Power Cable
