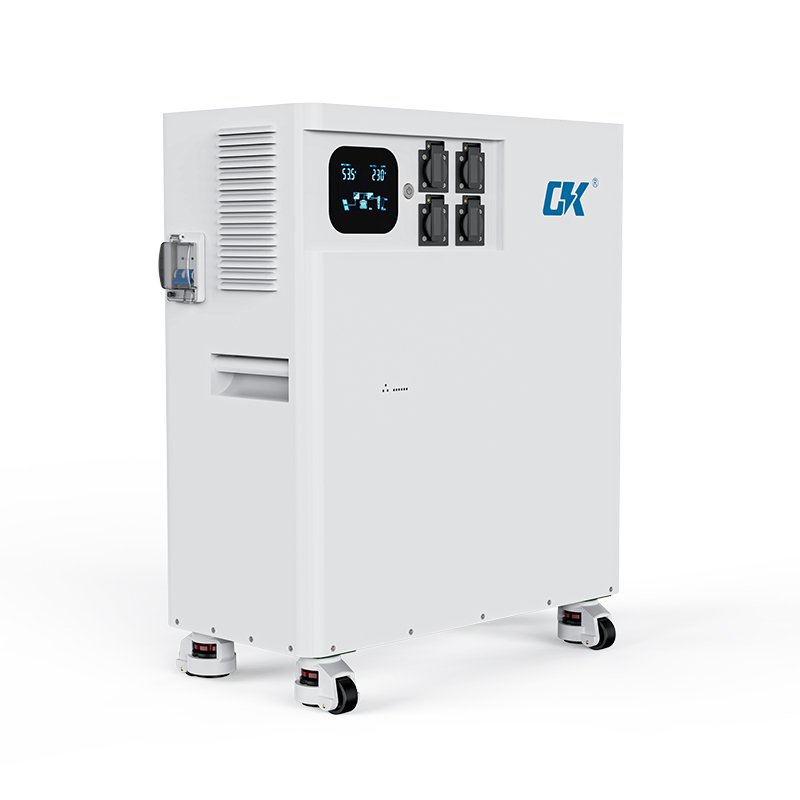

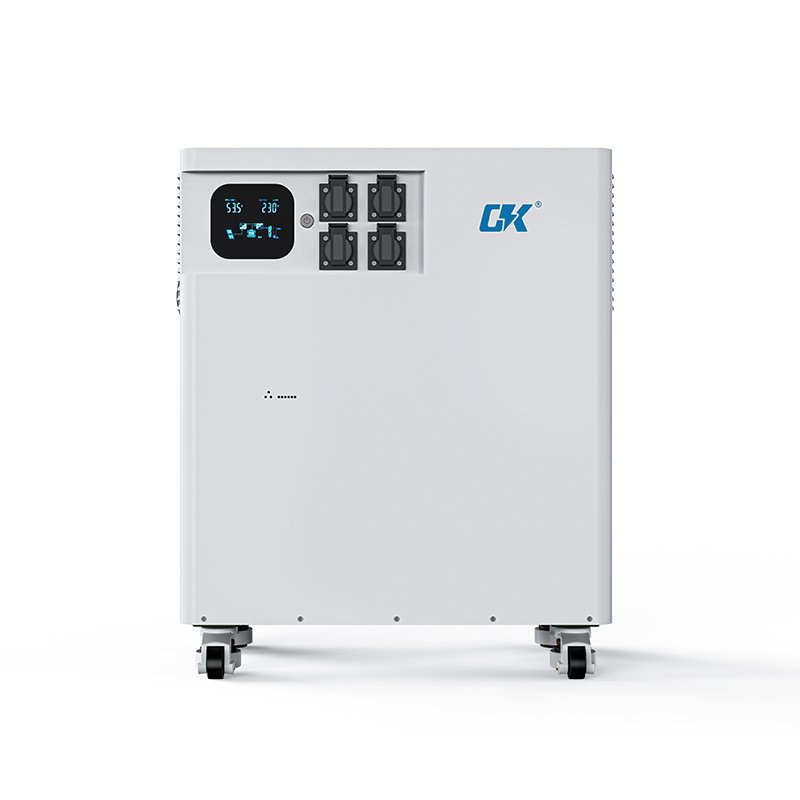

18.84Kwh All In One Solar Energy Storage Battery

Battery Nominal Voltage:51.2Vdc

Battery Nominal Capacity:348Ah

Battery Nominal Power:18.84kWh

0utput Power:11000W

Output Voltage:230Vac+5%

Output Frequency:50Hz/60Hz

Mains Supply 0utput Voltage:(170Vac-280Vac)±2%@UPS Mode;

(90Vac-280Vac)±2%@APL Generator Mode

Mains Supply Charge Current:DC 120A MAX

Loaded Motor Energy:7HP

PV Rated Operating Voltage:300Vdc

PV Input Voltage：100Vdc~500Vdc

Max PV Input Power:5500W+5500W

Max PV Input Current:22A

PV Charge Current:DC 150A MAX

Hybrid Charge Current:DC 150A MAX

Cycle Lifetime:6000time+

Product Dimension:678*326*825mm

Net Weight: 145Kg
