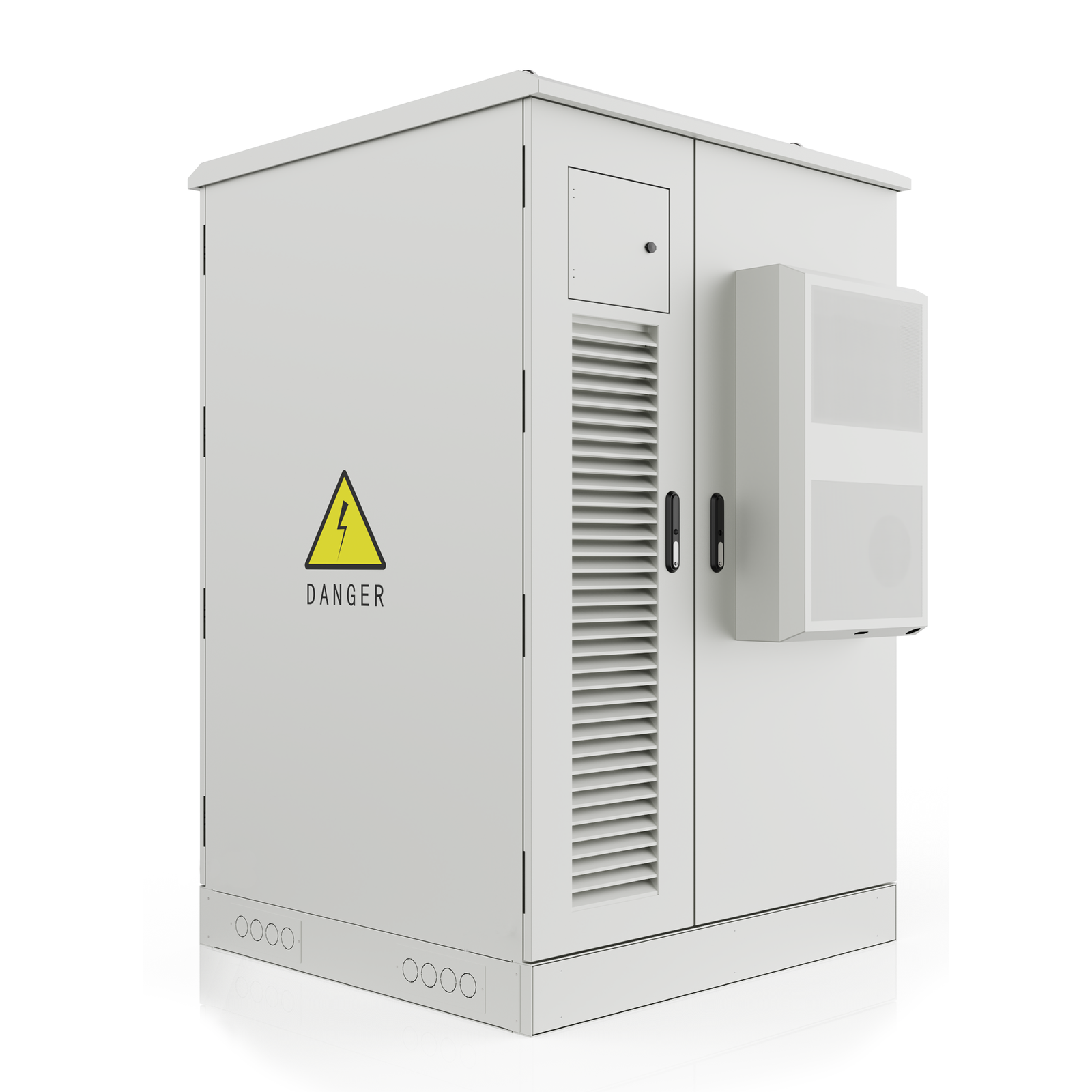

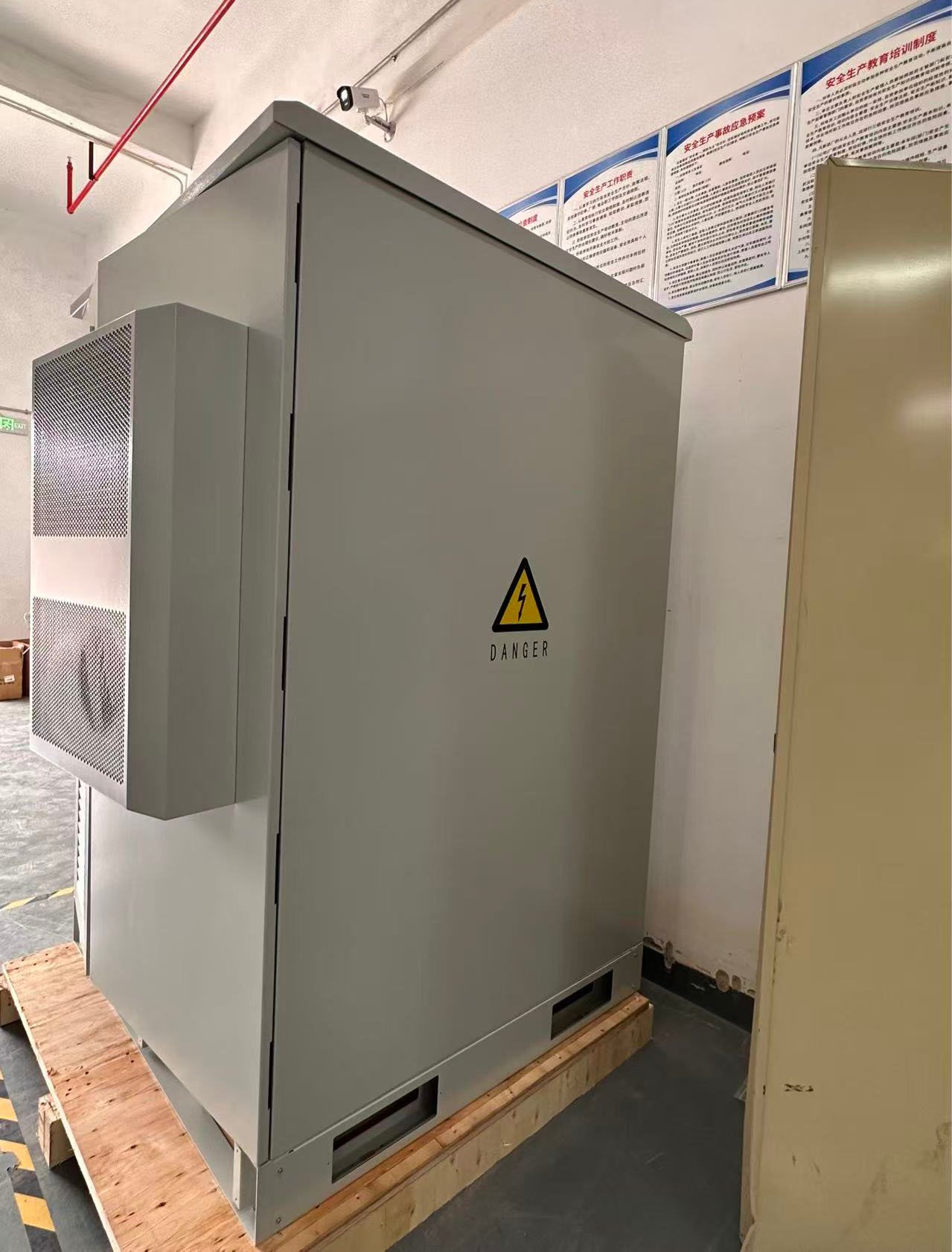

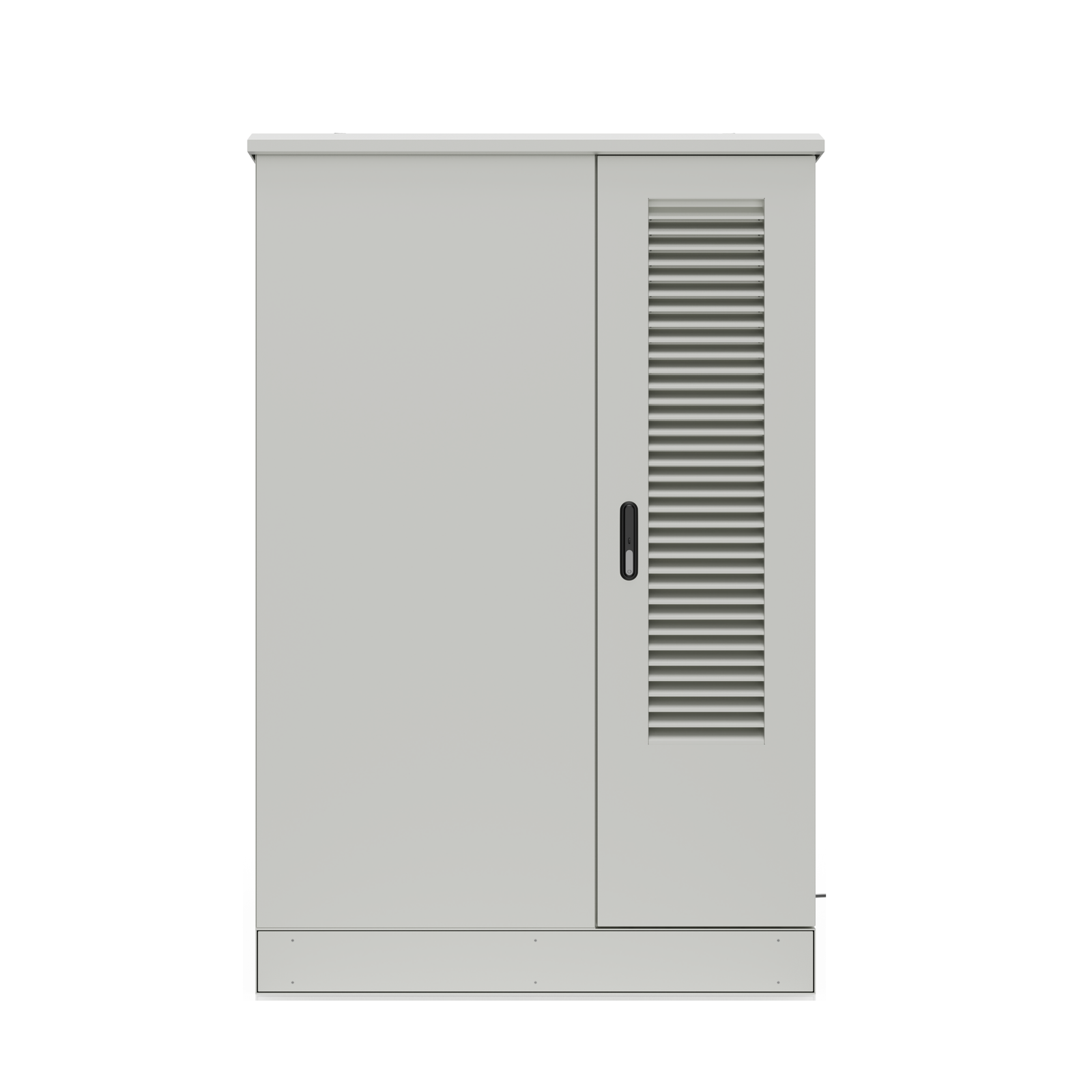

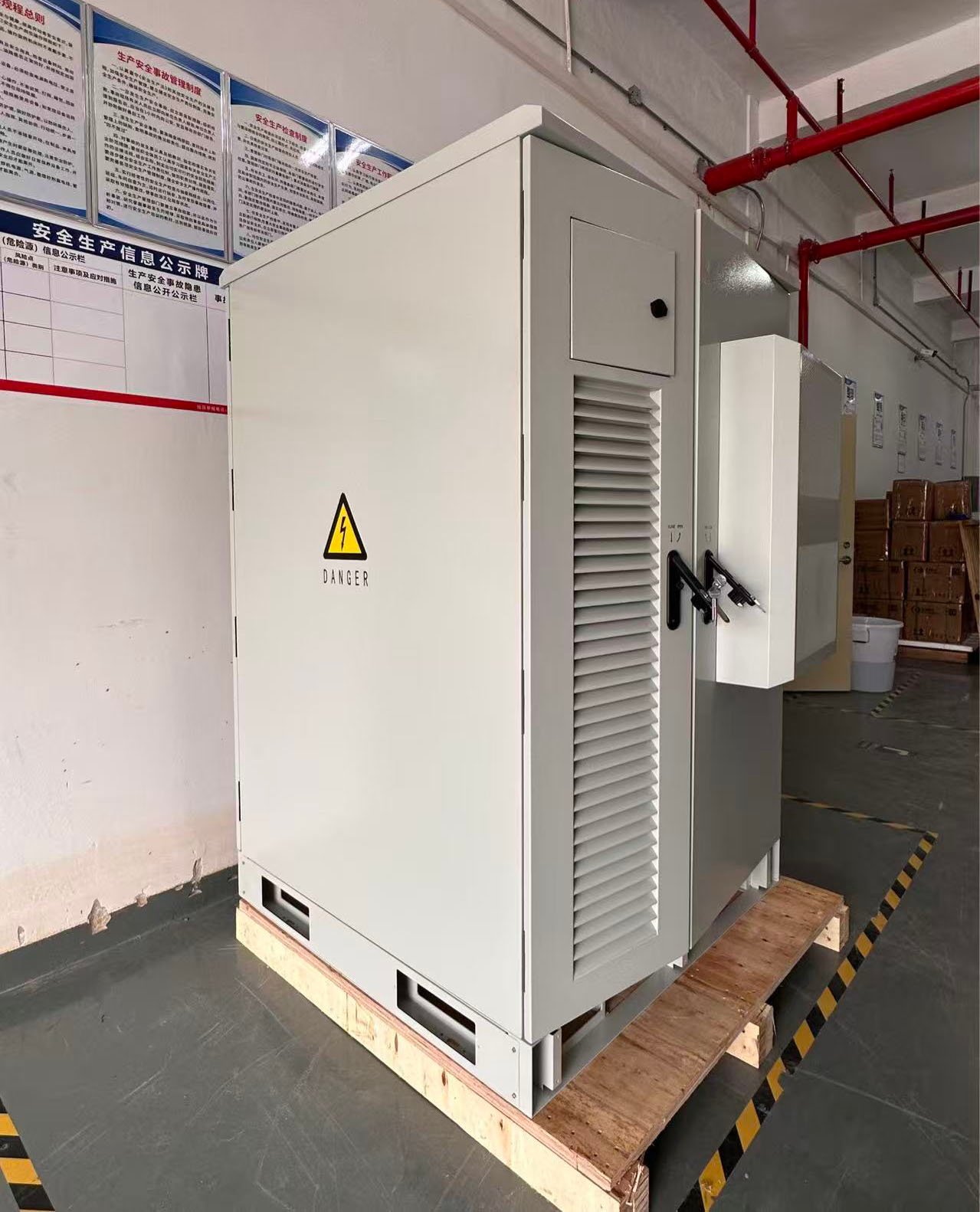

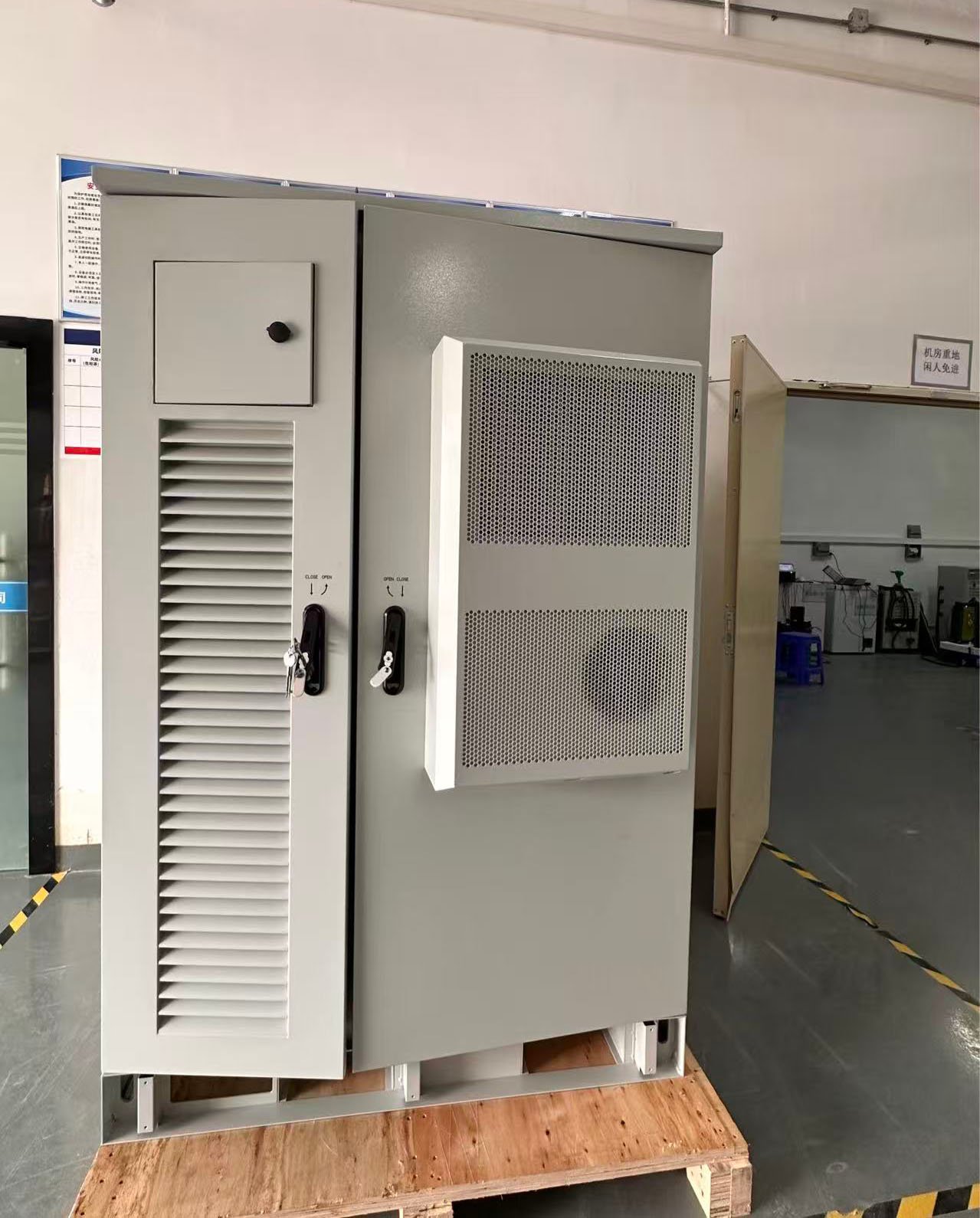

120Kwh 60Kw Energy Storage Container Bess Solar Battery Energy Storage System

Battery Module:

Voltage:76.8V
Capacity:314Ah
Energy:24.11kWh
Cooling Mode:Air Cooling

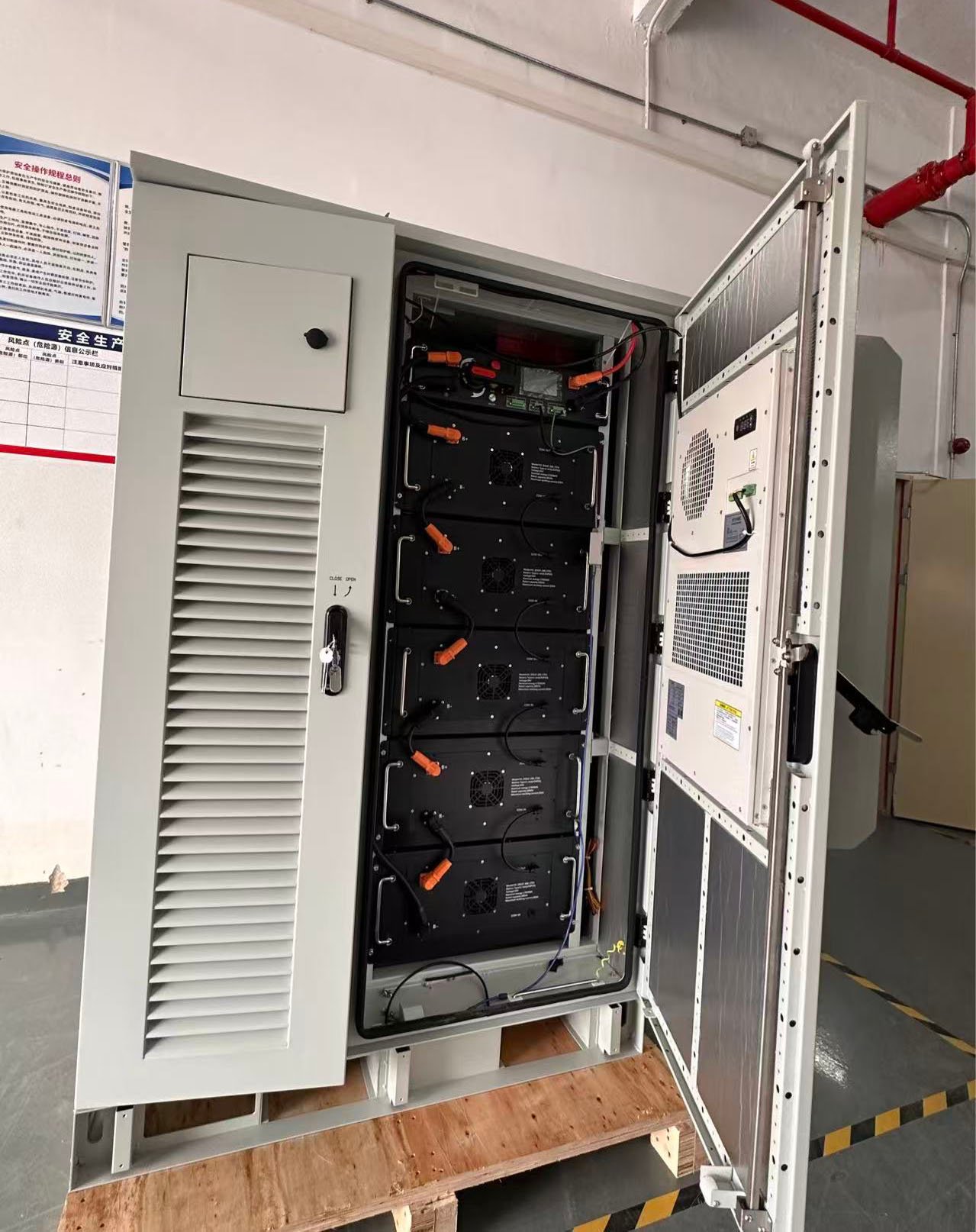

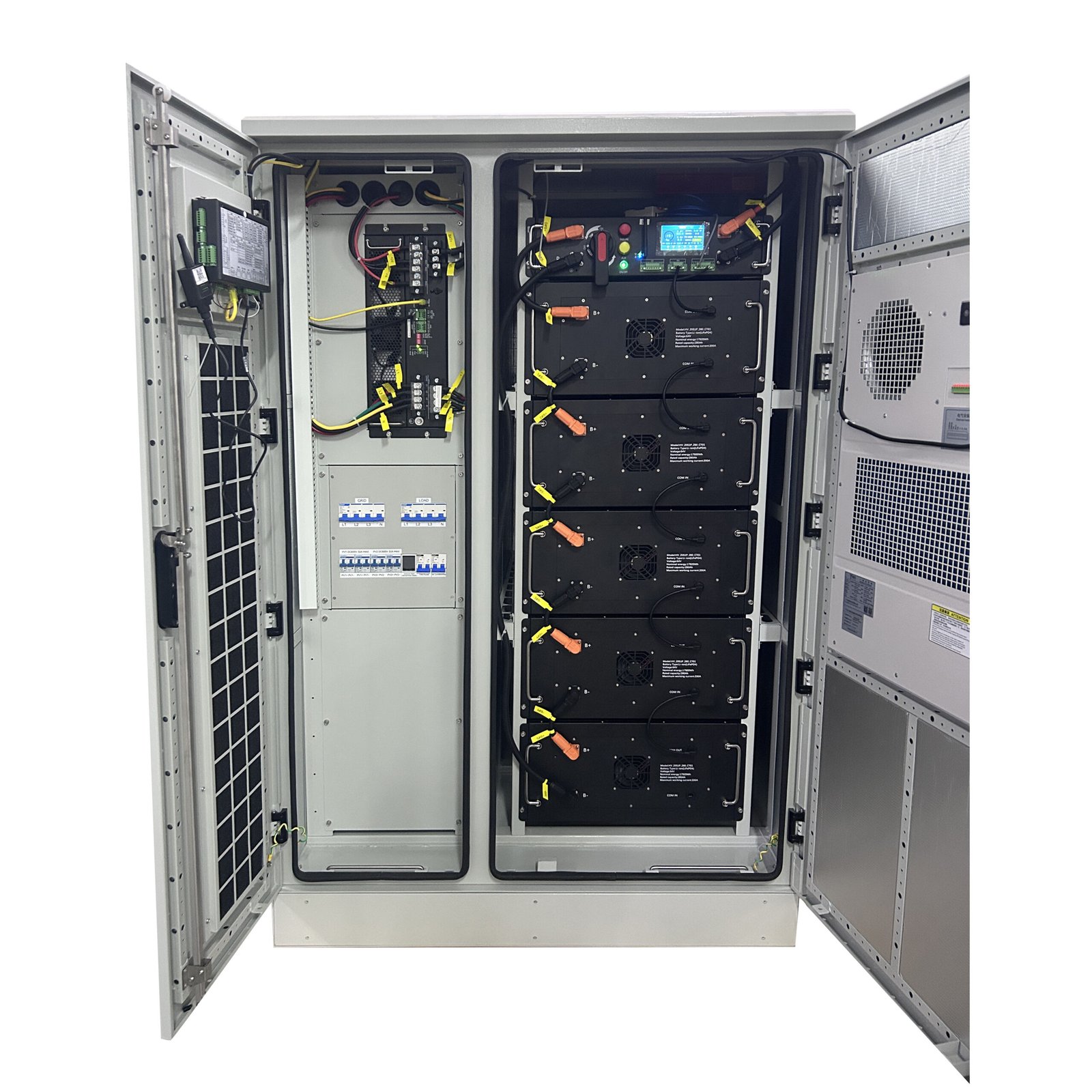

Battery Cluster:

Rated Voltage:438V
Grouping:1P120S
Rated Capacity:314Ah
Output Voltage Range:300V~438V
Rated Energy:120KWh
Maximum Pulse Discharging Current:157A
Maximum Continuous Charging Current:157A

Maximum Continuous Discharging Current:157A
Charge Cut-off Voltage:420V
Discharge Cut-off Voltage:336V
Communication Method: RS485/CAN

Battery System

System Grouping:1 Cluster in Parallel
Rated Power:PCS 30 kw/PV 38.4kw
Rated Voltage:384V
DC Voltage Range:336V~420V
Rated Energy:120KWh
